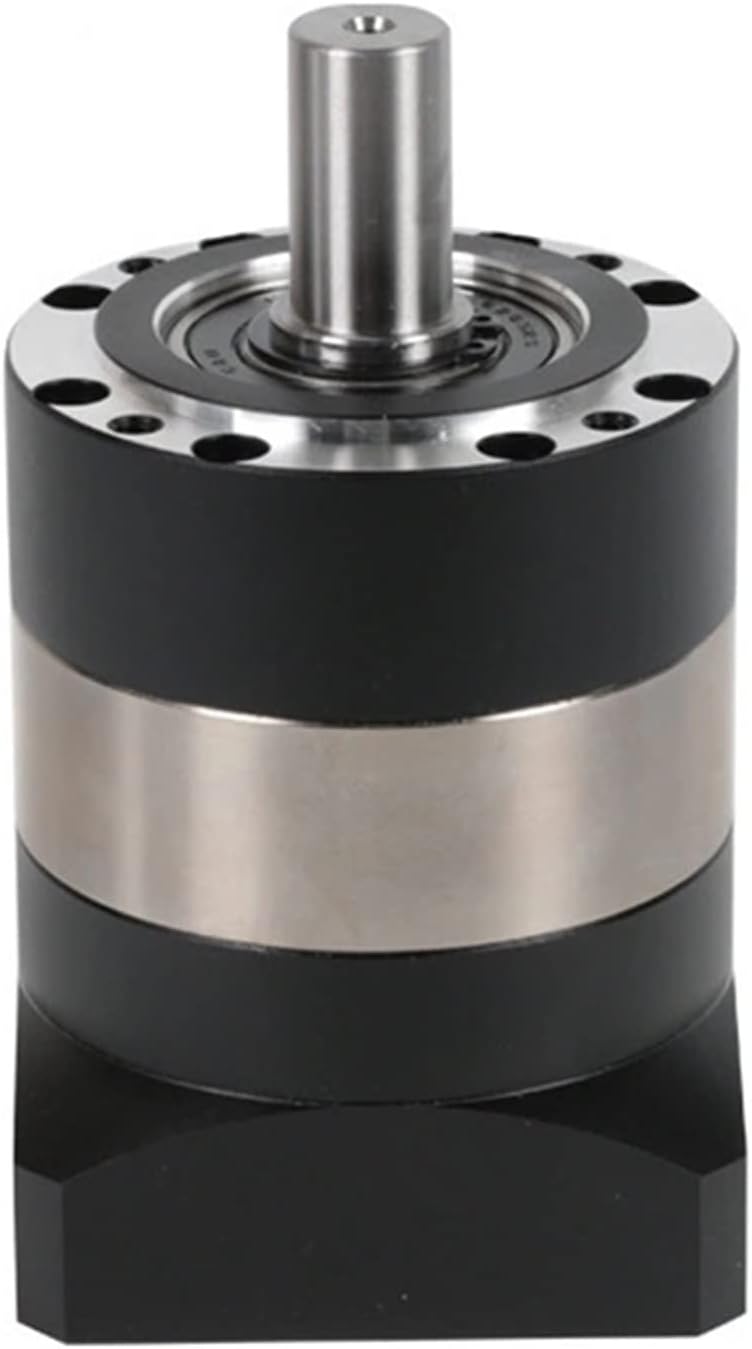

Speed Box 145mm Servo Motor Reducer, 130mm Motor Planetary Reducer, Input 19/22/24mm,Max 210Nm, 7-12arc-min Gearbox, Ratio 3:1,5:1-100:1 Reducer Gearhead (Size : Ratio 5, Color : 19mm Input)

130mm Servo Motor Planetary Reducer Ratio 3:1,5:1-100:1,145mm Servo Motor Reducer, Max 210Nm,7-12arc-min Gearbox Input 19/22/24mm ShaftFeatures: 1. Threaded connection at the output end, standardized installation dimensions, strong versatility,2. Single cantilever structure, simple design, high cost performance,3. Smooth operation and low noise,4. The accuracy is 7-12 arc-min, which can be adapted to most occasions.Rated torque:86Nm (10:1 / 100:1) ; 161Nm (3:1 / 15:1 / 30:1) ;170Nm (7:1 / 70:1 );210Nm (4:1 / 5:1 / 20:1 / 25:1 / 35:1 / 40:1 / 50:1 )Maximum torque: 1.5 times rated torqueEmergency braking torque: 2.5 times rated torqueMax radial force: 1240NMax axial force : 1000NTorsion rigidity: 11Nm/arc-minMax input speed: 6000rpmRated input speed: 3500rpmNoise: less than 65dBService life: 20000h

• Max radial force: 1240N; Max axial force : 1000N.
• Maximum torque: 1.5 times rated torque.
• Max input speed: 6000rpm; Rated input speed: 3500rpm.
• Low friction motor, low operating noise , easy operation.
• High transmission efficiency, wide speed range, high precision.
