YUCHENGTECH Ultrasonic Cutting Machine Knife Ultrasound Plastic Cutter Mini Handheld Ultrasonic Cutter for PP PVC PE ABS Acrylic

Note: Application areas: The product is suitable for: automobile repair factories, textile factories, injection molding factories, rubber factories, engineering research and development experimental choking, circuit board factories, DIY maintenance and so on. It is used to cut all kinds of thermoplastic films and sheets with high precision, including but not limited to plastics, silicone, acrylic, corrugated cardboard, rubber, fabric and leather. Parameters: Model: QG-100 Power supply: 110V/50-60Hz Power: 100W Frequency: 28KHz Blade length: 25mm Working head size: 211x42x42mm Host size: 300x268x104mm Configuration of piezoelectric variable frequency energy converter: Piezoelectric variable frequency energy converter CV33, PZT lead zirconate titanate piezoelectric ceramic Diameter: 40mm Total length of ultrasonic probe: 211mm Ultrasonic cutting blade material: titanium alloy Cable length: 150cm

• 1.【Smooth and neat cutting】: ultrasonic cutting knife uses ultrasonic energy to locally heat and melt the material to be cut to achieve the cutting purpose, which can significantly reduce the adhesion of the material and burrs to ensure that the cutting surface is clean and smooth. Quickly replaceable cutter head design, frosted handle for easy grip, safer and more environmentally friendly operation.
• 2.【Safety and environmental protection】: the use of ultrasonic high-frequency vibration cutting principle, mechanical vibration can be transmitted to the cutting knife and cutting materials to achieve mechanical slitting, local heating and melting to ensure that the cutting surface is clean and smooth, no need for sharp edges to achieve accurate cutting, safety and environmental protection, high stability.

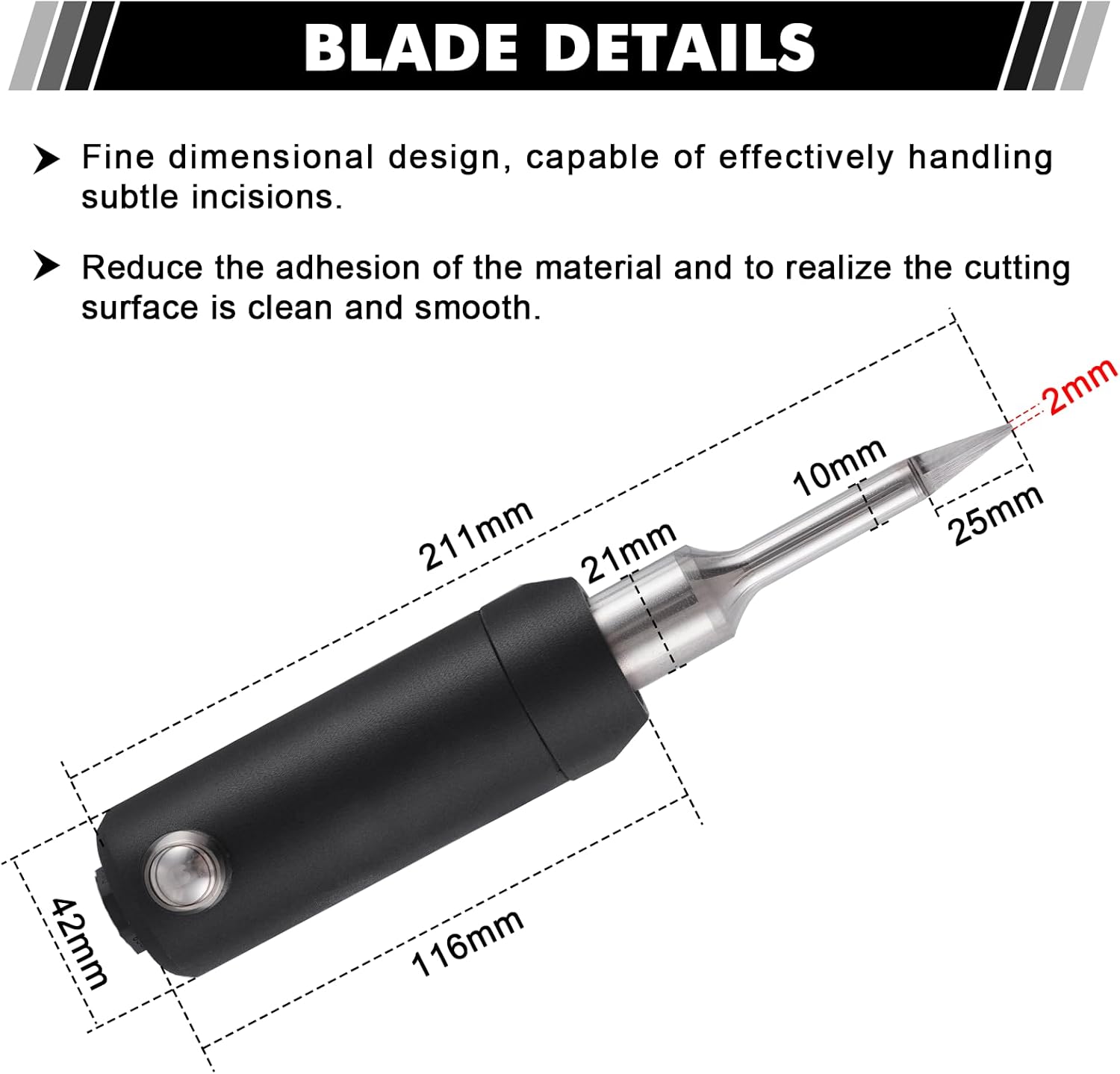

• 3.【Important parameters】: Piezo Frequency Conversion Energy Converter Configuration: Piezo Frequency Conversion Energy Converter CV33, PZT Lead Zirconium Titanate Piezo Ceramic; Cutting Knife Material: Titanium Alloy; Cutting Head Length: 25mm; Working Head Size: 211x42x42mm; Power Output: 100W; Nominal Frequency: 28KHz; Cable Wire: 150cm.

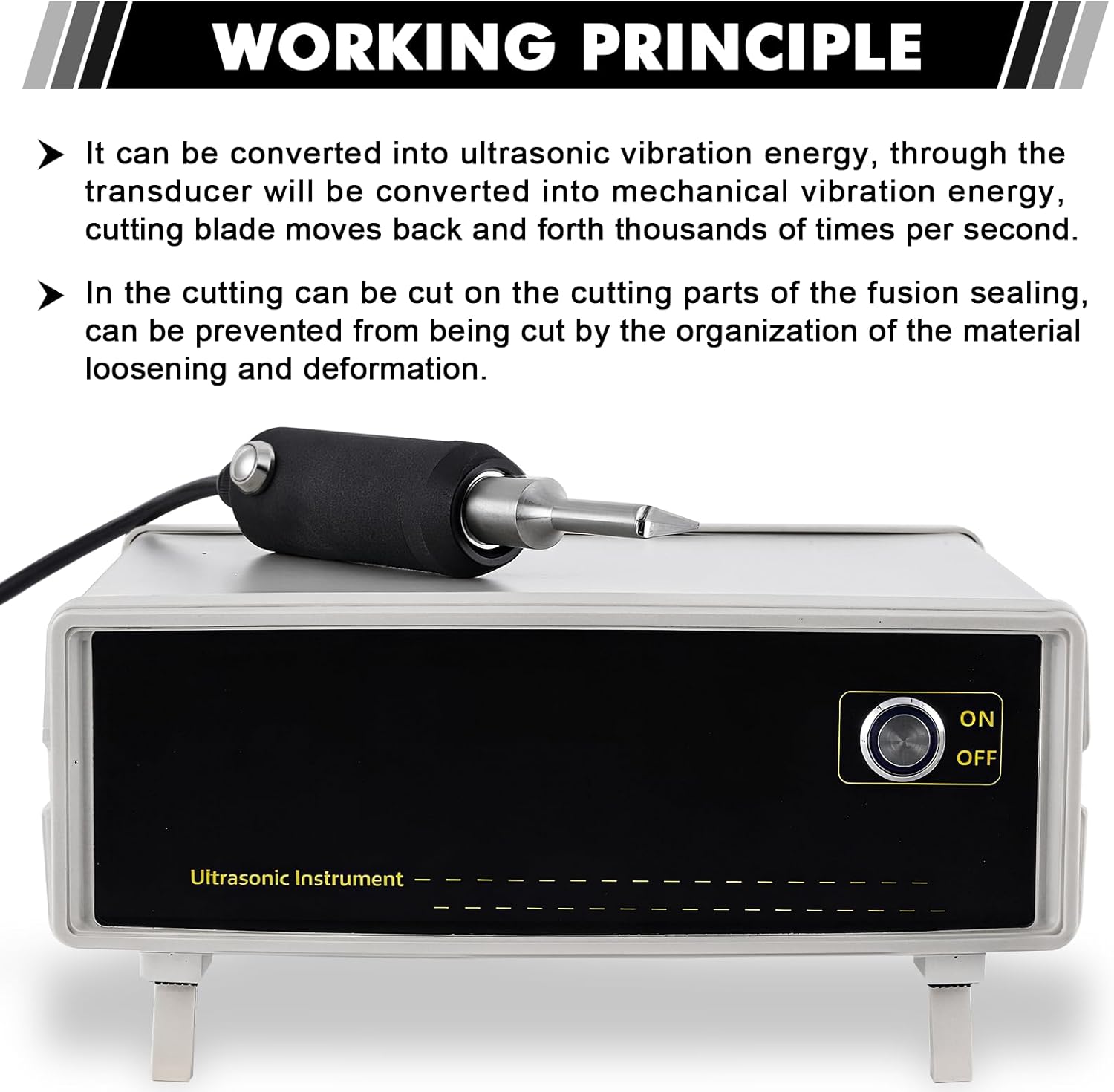

• 4.【Working principle】: ultrasonic generator can be converted into ultrasonic vibration energy, through the transducer will be converted into mechanical vibration energy, cutting blade moves back and forth thousands of times per second, which makes the cutting knife can easily cut into the interior of the material, in the cutting can be cut on the cutting parts of the fusion sealing, can be prevented from being cut by the organization of the material loosening and deformation.
• 5.【Applied Materials】：Mainly used in many kinds of plastic materials，such as：ABS PE, PVC, Acrylic, Nonwovens, Chloroprene Rubber, Corrugated Paper, Polywood, Glass Fiber Resin, Thick Cardboard, Linen (linoleum), Urethane, Nylon, PP, etc.
